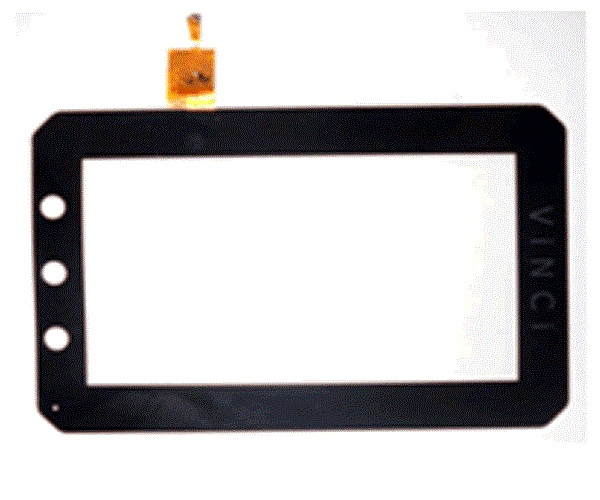

电容式触摸屏
9.7 inch
  • 产品编号： 9.7 inch
  • 产品介绍：
    Touch Screen Type:Projected Capacitive Multi-touch

    Cover Lens Material:0.8mm tempered optical glass coated with anti-finger print

    Outline Dimensions:236.69x183.56x1.7mm

    View Area:198.61x149.46mm

    Active Area:197.61x148.46mm

    TP Size (inch, diagonal):9.7 inch

    Interface:USB or I²C

    Connector:FPC

    Input Method:Finger or exclusive pen

    Input Force:<10g

    Operation Temperature:-20℃～70℃

    Storage Temperature:-40℃～85℃

    Storage Humidity:20%～90%RH

    Surface Hardness:6H

    Hitting life:35,000,000 times

    ROHS, REACH, PTH, PAHs, NP
