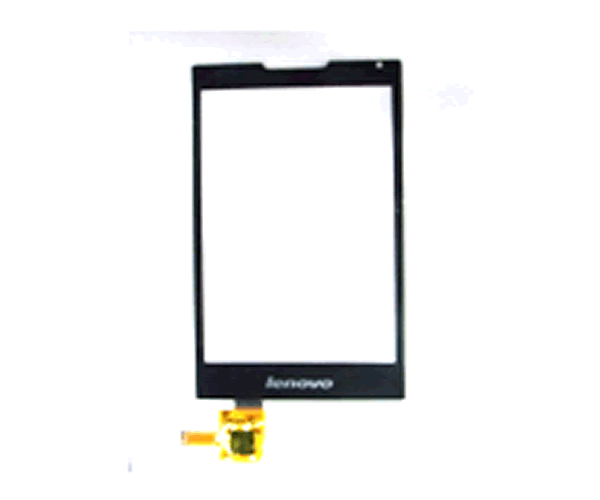

电容式触摸屏
5.0 inch
  • 产品编号： 5.0 inch
  • 产品介绍：
    Touch Screen Type:Projected Capacitive Multi-touch

    Cover Lens Material:0.7mm tempered optical glass coated with anti-finger print

    Outline Dimensions:155x84.8x1.4mm

    View Area:107.8x64.6mm

    Active Area:107.8x64.6mm

    TP Size (inch, diagonal):5 inch

    Interface:I²C or USB

    Connector:FPC

    Input Method:Finger or exclusive pen

    Input Force:≦10g

    Operation Temperature:-20℃～70℃

    Storage Temperature:-40℃～85℃

    Storage Humidity:20%～90%RH

    Surface Hardness:6H

    Hitting life:35,000,000 times

    ROHS, REACH, PTH, PAHs, NP
