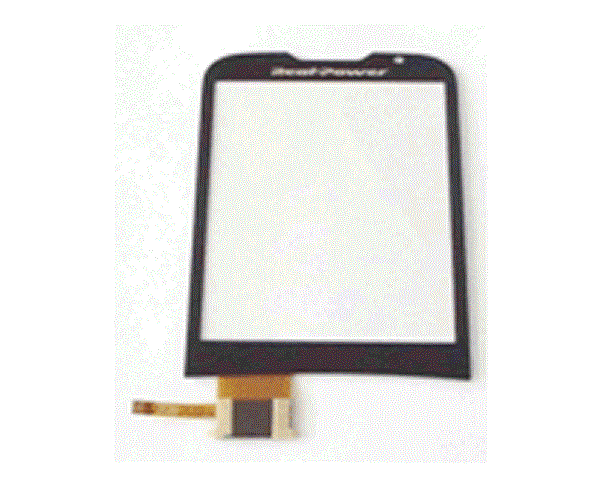

电容式触摸屏
4.3 inch
  • 产品编号: 4.3 inch
  • 产品介绍:
    Touch Screen Type:Projected Capacitive Multi-touch

    Cover Lens Material:0.7mm tempered glass

    Outline Dimensions:112.8x69.8x1.3mm

    View Area:95.4x54.2mm

    Active Area:95.4x54.2mm

    TP Size (inch, diagonal):4.3 inch

    Interface:I²C

    Connector:FPC

    Input Method:Finger or exclusive pen

    Input Force:≦10g

    Operation Temperature:-20℃~70℃

    Storage Temperature:-40℃~85℃

    Storage Humidity:20%~90%RH

    Surface Hardness:6H

    Hitting life:35,000,000 times

    ROHS, REACH, PTH, PAHs, NP
