Capacitive Touch Screen Home Products Capacitive Touch Screen 9.7 inch

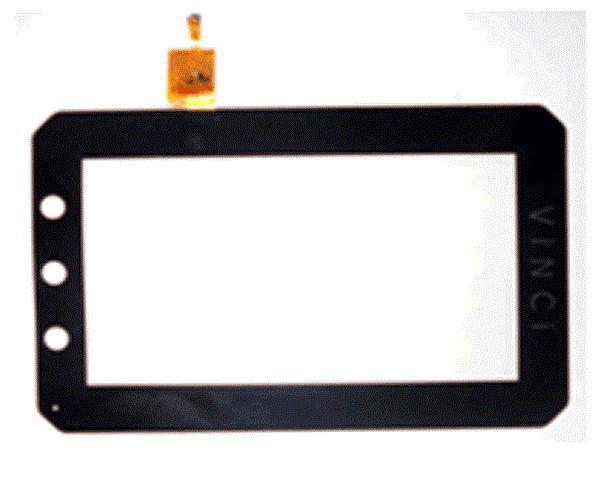

9.7 inch
  • Product NO.: 9.7 inch
  • Product Description:
    Touch Screen Type:Projected Capacitive Multi-touch

    Cover Lens Material:0.8mm tempered optical glass coated with anti-finger print

    Outline Dimensions:236.69x183.56x1.7mm

    View Area:198.61x149.46mm

    Active Area:197.61x148.46mm

    TP Size (inch, diagonal):9.7 inch

    Interface:USB or I²C

    Connector:FPC

    Input Method:Finger or exclusive pen

    Input Force:<10g

    Operation Temperature:-20℃~70℃

    Storage Temperature:-40℃~85℃

    Storage Humidity:20%~90%RH

    Surface Hardness:6H

    Hitting life:35,000,000 times

    ROHS, REACH, PTH, PAHs, NP
