Capacitive Touch Screen Home Products Capacitive Touch Screen 10.12 inch

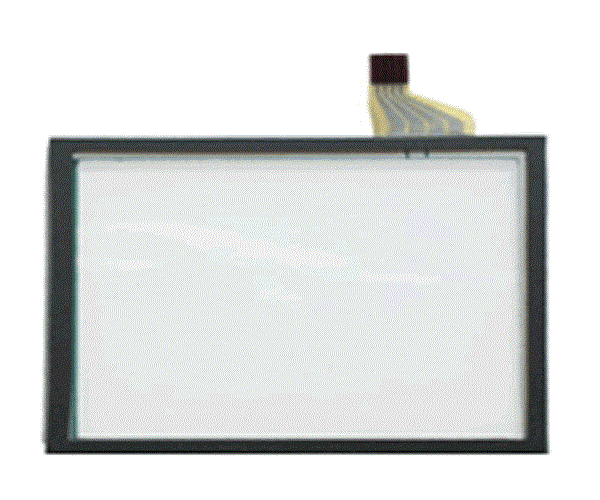

10.12 inch
  • Product NO.: 10.12 inch
  • Product Description:
    Touch Screen Type:Projected Capacitive Multi-touch

    Cover Lens Material:1.1mm tempered optical glass coated with anti-finger print

    Outline Dimensions:264.63x170.63x1.8mm

    View Area:223.86x126.28mm

    Active Area:223.86x126.28mm

    TP Size (inch, diagonal):10.12 inch

    Interface:USB or I²C

    Connector:FPC

    Input Method:Finger or exclusive pen

    Input Force:≦10g

    Operation Temperature:-20℃~75℃

    Storage Temperature:-40℃~85℃

    Storage Humidity:20%~90%RH

    Surface Hardness:6H

    Hitting life:35,000,000 times

    ROHS, REACH, PTH, PAHs, NP
